Bicarbonate Haemodialysis Concentrates

Overview

Haemodialysis concentrate is a product intended to be mixed with water to prepare a solution with an electrolyte composition similar to that of blood, a dialysate, for the exchange of solutes with blood through a semi-permeable membrane in the dialyser of a haemodialysis system. It is intended to remove metabolic waste from the blood to help maintain physiological blood electrolyte and pH levels.

The product is supplied as dry powder, including dry acid concentrate and bicarbonate concentrate. The semipermeable membrane principle, through diffusion and convection, removes harmful and unnecessary metabolic waste and excessive electrolytes from the body, purifying the blood and correcting water-electrolyte and acid-base balance.

Intended use

The product includes salts of the following constituents: sodium, potassium, magnesium, calcium, chloride, and anions of weak acids, for example bicarbonate (HCO3), acetate and citrate. After application, this device cannot be reused.

Indications

The device is indicated in the treatment of acute and chronic renal failure during the haemodialysis procedure.

Contraindication

There are no absolute contraindications for bicarbonate dialysis. The haemodialysis concentrate must be used only on the direction of a physician who has evaluated all the pertinent features of the product in relation to the individual patient.

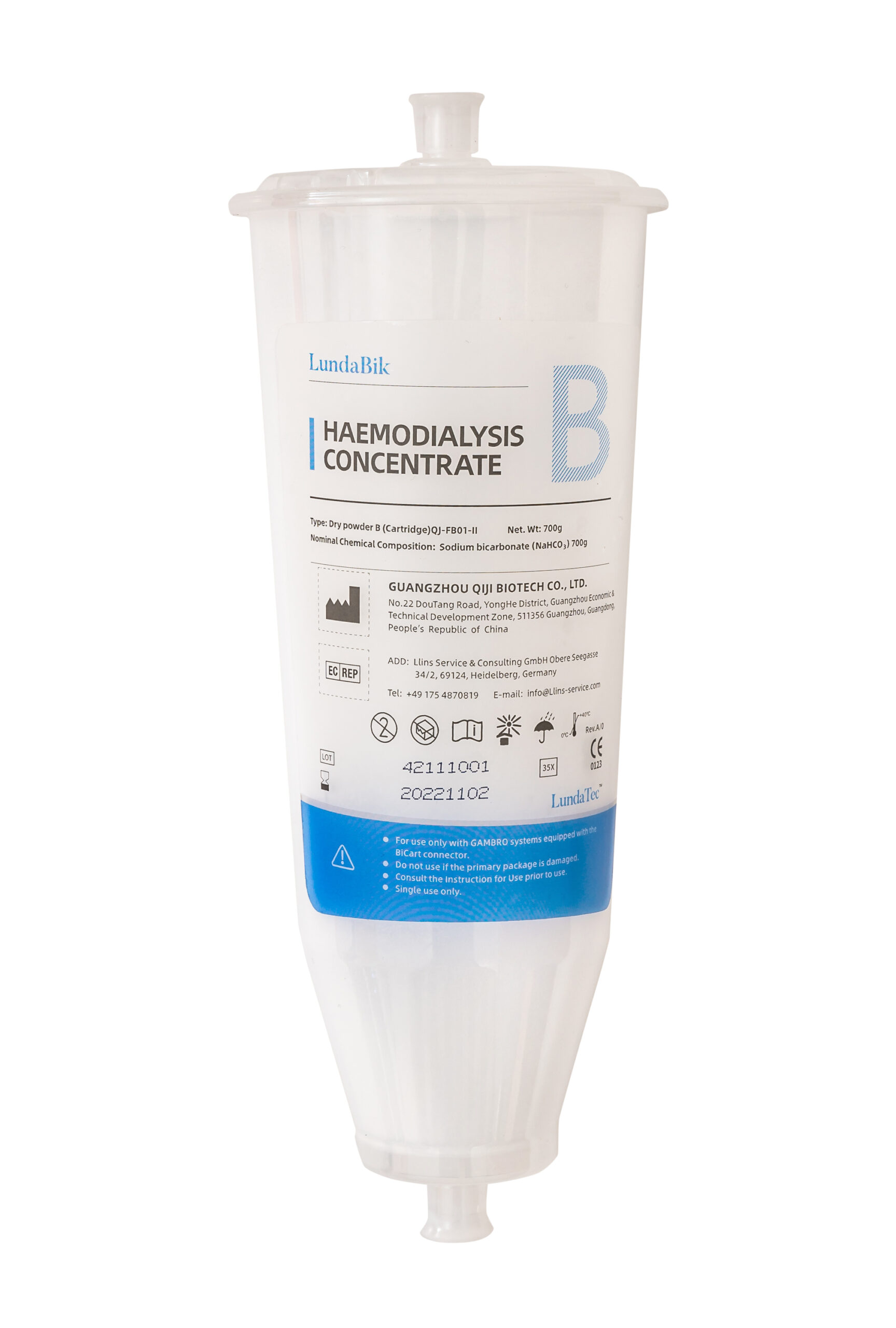

LundaBik

Dry Powder B-Cartridge 700g

Closed design to reduce microbial contamination
Online preparation of bicarbonate
700g cartridge for one patient treatment
Medical grade raw materials complying with ISO 13485 medical device management
For use with cartridge connector systems
For use only with suitable 35X acid concentrates
For use with water that meets current ISO 23500-3 water for haemodialysis and related therapies
Chemical composition: Sodium Bicarbonate, Ph Eur

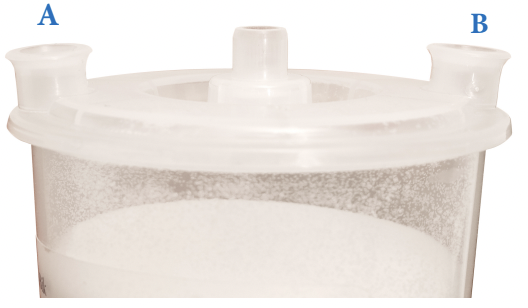

Cap indentations A and B on the top of the LundaBik cartridge

Advantages of the B-Cartridge

Two caps come with the LundaBik cartridge, protecting the connectors during transportation. During the treatment session the caps sit on the two cap indentations on the top of the cartridge, marked A and B.
Placing the caps back on the top and bottom connectors after a treatment session avoids spillage and dripping.
Top and bottom filters prevent bicarbonate particles from exiting the cartridge.

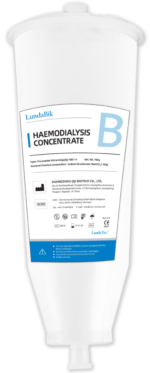

The B-Cartridge is a sodium bicarbonate concentrate in a sealed polypropylene unit. When attached to the holder, water passes through the cartridge, producing a saturated bicarbonate solution ready for single patient use.
If rinsed clean, the cartridge is recyclable depending on your facility and local waste management provider’s acceptance of polypropylene.
Compatible with dialysis machines with three stream proportioning bicarbonate systems, set to proportion 1 part acid to 34 parts bicarbonate concentrate and water.

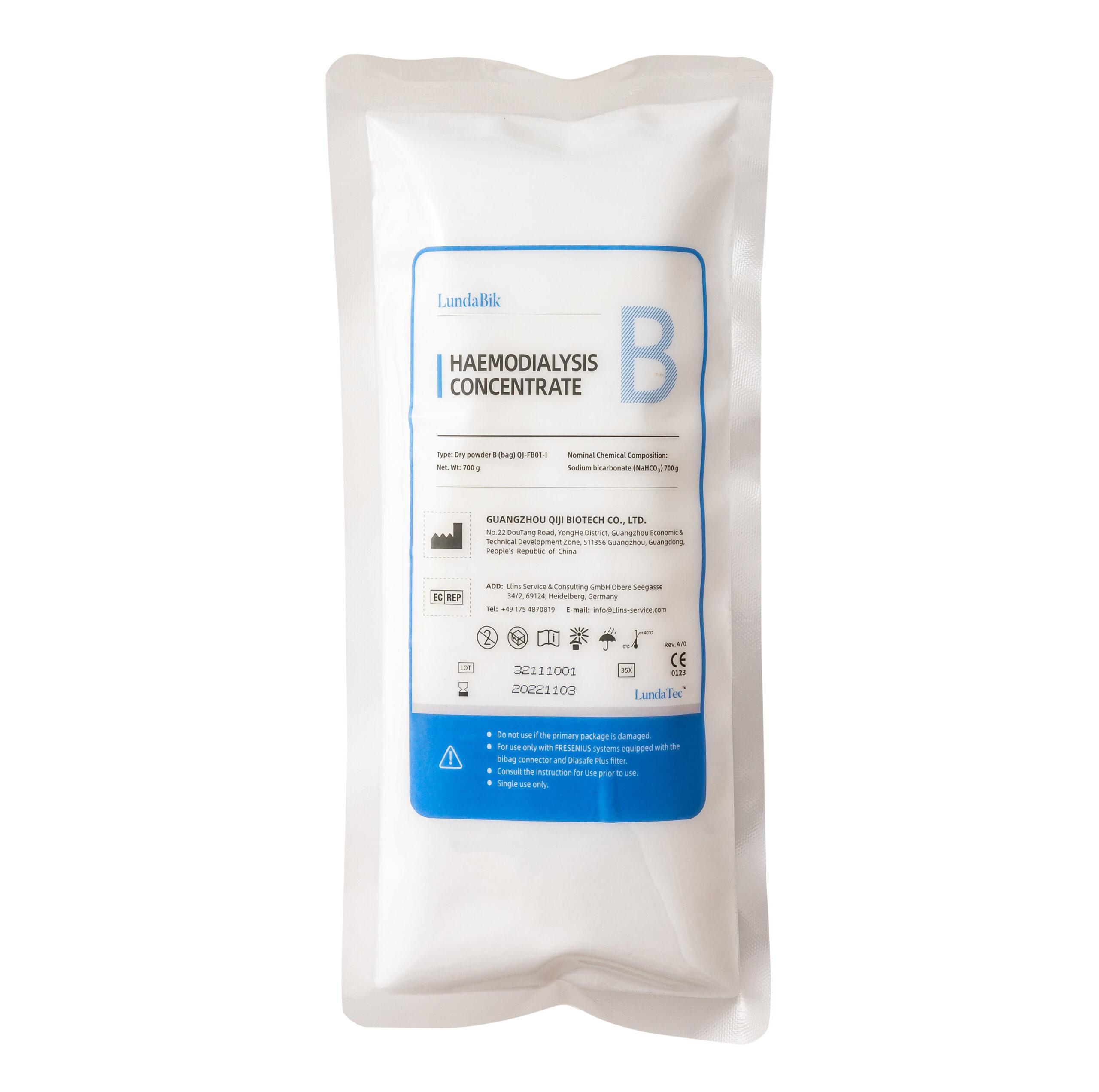

LundaBik

Dry Powder B-Bag 700g

The LundaBik B-Bag is a sodium bicarbonate concentrate in a sealed polyamide polyethylene (PA/PE) unit. When hung on the connector nozzle, water passes through the bag, producing a saturated bicarbonate solution ready for single patient use. The dialysis machine then mixes that solution with water and the acid concentrate to produce a bicarbonate based dialysis fluid.

Closed design to reduce microbial contamination
Online preparation of bicarbonate
700g b-bag for one patient treatment
Medical grade raw materials complying with ISO 13485
For use with systems equipped with the appropriate connector
For use only with 35X acid concentrates
For use with water that meets current ISO 23500-3
Chemical composition: Sodium Bicarbonate, Ph Eur

Advantages of the B-Bag

Less waste cost

The flexible, recyclable bag may reduce waste costs depending on your facility and local waste management provider’s acceptance of PA/PE materials.

No spilling

No spilling or dripping during disconnection, and no manual removal of remaining water.

More hygienic

A more hygienic way to work, with minimal waste volume.

Less storage

Less storage space required than liquid bicarbonate canisters.

Lighter handling

The lightweight packaging removes the strain associated with lifting heavy liquid bicarbonate canisters.

Single patient use

One bag per patient treatment, prepared online during the session.

Stocked Bicarbonate Range

Bicarbonate concentrates
Product	Code	Weight	Compatibility	Pack size

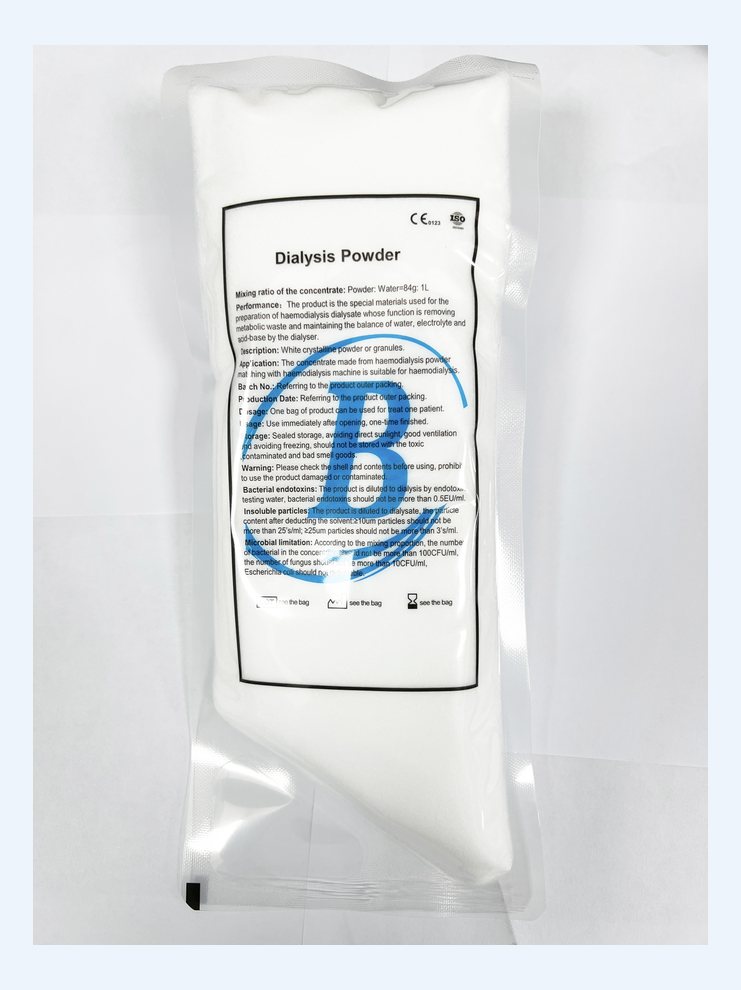

BiBag 650g	BB650	650 g	FMC 4008S, FMC 5008	20 per box

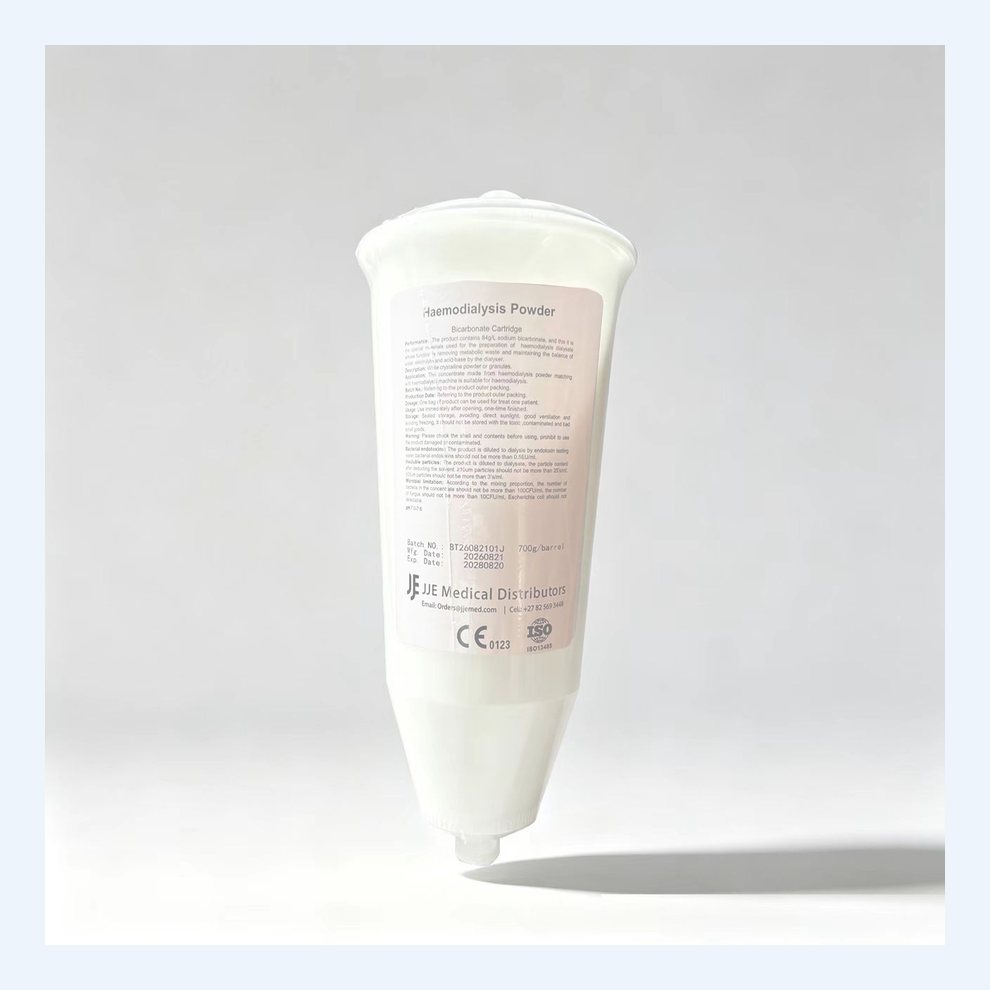

BiCart 720g	BC720	720 g	Cartridge connector systems, single and double servings available	10 per box
LundaBik B-Cartridge	LundaBik 700	700 g	Three stream proportioning systems, 1:34	Per box
LundaBik B-Bag	LundaBik B-Bag 700	700 g	Machines with the appropriate connector, 1:34	Per box
